Openwidth / Tabular / Woven
From Roll to Roll / Roll to Fold / Fold
to Roll / Fold to fold
Whether your requirements include the most
delicate knits or the heavy canvas CARDWELL can design and build
an inspection Machine and drive system to handle your needs.
Our machine are equipped with up-to-date
technology with user friendly features to meet the demands of
international buyers.

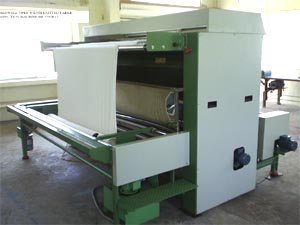

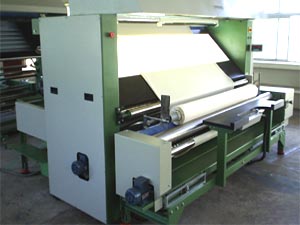

Open width Fabric inspection Machine –
MR – OWB -15
Technical Features :
Batching Device with Auto Edge guiding
system
-
Photo sensor detects fabric edges and
activates motorized hydraulic cylinder to shift batch rollers
to align firm, straight edged packages.
-
The batching devices is installed Front /
Behind the operator for convenient handling of fabric windup.
-
A two-rewind surface batches does not
require a mandrel. Fabric is wound directly on to a paper
plastic tube.
-
Various ratios on batching rolls maintain
cloth roll hardness
-
Anti curling mechanism
-
One rubberized and one SS Roll for
batching
-
Cloth can be fed to machine from batch
roll.
-
2 HP AC Inverter drive system to
synchronize the speed between inspection table and De-Rolling
device for uniform Fabric Tension Control.
-
Scroll roller expands the fabric to
provide even rolls without any creases.
-
Laminated inspection Table – 6 nos. of 4
ft energy efficient tube lights provided underneath and 4 nos.
on top.
-
Digital fault logging system with printer
interface.
-
Digital Fabric length Counter.
-
A variable speed control system allows
the operator to infinitely vary the speed of the machine.
-
Automatic stop arrangement to stop the
machine at the end of the Fabric piece.
-
Robust and attractive design.
Optionals
PLC control system
MMI Based Operation
|
