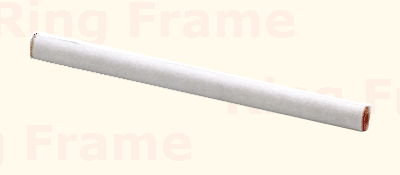

Magnetic
Clearer Roller
for front bottom fluted roller
- yet another futuristic
product from cardwell. |
|
The overseas buyers
are very stringent on quality parameters. To meet the quality
standards and compete effectively, the exporting mills have to
incorporate such devices, which adds to their product quality.
|
|
|
|
Advantage:
-
The Magnetic Clearer Roller
sticks to the front bottom fluted rollers and revolves
along with the fluted roller.
-
The
flocks in the magnetic clearer roller perform like a brush and
clean the flutes while in motion.
-
Continuous cleaning of flutes and hence no accumulation of
short fibers and subsequent lapping.
-
End
breakage caused by lapping is thus prevented.
-
Improved yarn quality.
-
Prevents bending of fluted roller
due to excessive lapping.
Top....
|
|
PAD
CLEARER
for Bottom fluted roller
|
|
 |
|
Presently wooden
clearer rollers do not arrest the roller lapping
effectively. In this system, only the top surface of the
fluted rollers are cleaned. Periodical supervision is
essential to check the proper functioning of rollers, as
otherwise lapping results. This problem is totally
eliminated with our pad clearer, which cleans the inside of
the flutes thoroughly. For this reason almost all the mills
in far east have switched over to pad clearers on their ring
frames.
|
|
Advantages:
-
Simple system with maintenance free performance.
-
Total prevention of fluted roller lapping.
-
Specially designed rubber pads can perform effectively for two
years without replacement
-
Replacement cost of clearer rollers drastically reduced.
Top....
|
|

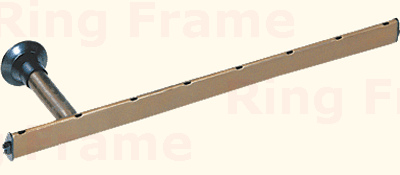

Common Pneumafil
Suction Tubes
For Ring frames such as LR G 5 /1 /
LR 6/ KTTM / ELITE |
|
|
|
It is often observed that in LR G 5/1 Ring
frames the suction pressure is higher at off end and lower at
gear end, resulting in pressure variation within frame. Lapping
tendency increases as the suction pressure reduces. This is
mainly due to individual suction tubes in the Ring Frames. This
when replaced with our Common Pneumafil suction tubes results in
the following benefits.
|
|
Advantages
:
-
Increases suction pressure
considerably.
-
Pressure variation between gear end and off end is drastically
reduced.
-
Possibility of altering suction fan blade diameter resulting
in substantial energy saving - this conversion on modern Ring
frame such as “Elite”
has resulted in energy saving due to increase in suction
pressure.
-
Facilitates the fitment of magnetic
clearer roller for the front bottom fluted roller which
is not possible when the ring frame is fitted with individual
suction tubes.
Top....
|
|
Spin Plus
A Programmable speed controller for
LR G 5/1 Ring frames and Ring
frame with VPS drive - Spin plus & Cone drum speed variator
could be offered as a combination for shorter Ring frames.
|
|
Advantages
:
-
LED display
-
Automatic speed correction
-
Tamper proof facilities like password for data entry and non
Volatile memory. Production monitoring parameters
-
Altering the speed verses time pattern between doffs
-
Few moving parts ensures very less maintenance
Top....
|
