| Input Zone: Roll or Fold form: |
| Roll Form: |
Conveyor type unwinding with pneumatically operated tilting arrangement to enable easy loading of fabrics in roll form from 150 Kgs to 250 Kgs. This method of unwinding is more suitable for rolls of higher weight as during the unwinding process it does not create any wrinkles. (or)
Power Drive De-Rolling Cradle with pneumatically operated raising and lowering cradle to accommodate fabric rolls of lesser weights and also facilitate tension free un-winding. |
| |
| Fold Form: |
| Stainless Steel Sheet platform of required width placed at a specific height from the floor level. Fabric Roll End Stop sensor for joining the next roll. |
| |

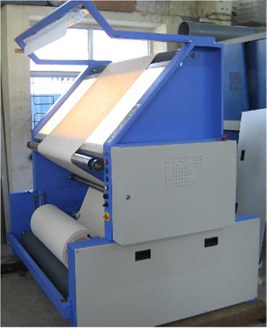

| Inspection Zone: |
 |
Pneumatically adjustable angle |
|
|
Illuminated inspection table |
|
|
Fluorescent Lamps - 2 rows in the top & 3 rows in the bottom |
|
|
UV lamp |
|
|
Digital Length Counter - with A C Drive Geared Motor |
|
| |
| Output Zone: Roll (or) Fold Form |
| Roll Form: |
| Photo sensor detects fabric edges and activates pneumatic cylinder to shift the Batch
rollers for alignment, thereby offering a straight edged package. |
| |
| The Batching rollers can be located in the front (or) behind the operator, as per
individual requirement. |
| |
| Fabric directly wound on a paper (or) plastic tube |
| |
| Various ratios on batching rolls maintain the cloth roll
hardness |
| |
| Anti curling mechanism |
| |
| AC drive system to synchronize the speed between inspection
table and de-rolling device for uniform fabric tension control. |
| |
| Scroll roller expands the fabric to avoid formation of
creases in the fabric |
| |
| Fold Form : |
 |
Cutling Roller |
|
|
One Pair of Oscillating Delivery Rollers |
|
|
Driven by Geared Motor with Inverter |
|
