Magnetic Clearer Roller for front bottom fluted roller
- yet another futuristic
product
from cardwell.
The overseas
buyers are very stringent on quality parameters. To meet the quality standards
and compete effectively, the exporting mills have to incorporate such devices,
which adds to their product quality.
Advantages
-
The Magnetic Clearer Roller sticks to the front bottom fluted rollers and
revolves along with the fluted roller.
-
The flocks in
the magnetic clearer roller perform like a brush and clean the flutes while in motion.
-
Continuous cleaning of flutes and hence no accumulation of short fibers and
subsequent lapping.
-
End
breakage caused by lapping is thus prevented.
-
Improved yarn quality.
-
Prevents bending
of fluted roller due to excessive lapping.
|
|
PAD CLEARER
for Bottom
fluted roller |
|
 |
|
|
|
Presently wooden clearer rollers do not
arrest the roller lapping effectively. In this system, only the top surface of
the fluted rollers are cleaned. Periodical supervision is essential to check
the proper functioning of rollers, as otherwise lapping results. This problem
is totally eliminated with our pad clearer, which cleans the inside of the
flutes thoroughly. For this reason almost all the mills in far east have
switched over to pad clearers on their ring frames.
Advantages
-
Simple system with maintenance free performance.
-
Total prevention of
fluted roller lapping.
-
Specially designed
rubber pads can perform effectively for two years without replacement
-
Replacement cost of
clearer rollers drastically reduced.
|
|
Common

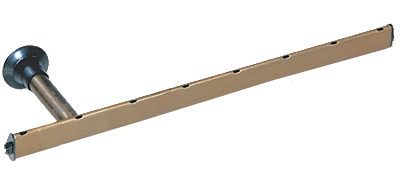

Pneumafil Suction Tubes
For Ring frames such as LR G 5 /1 / LR 6/ KTTM / ELITE |
|
Co
It is often observed that in LR G 5/1 Ring
frames the suction pressure is higher at off end and lower at gear end,
resulting in pressure variation within frame. Lapping tendency increases as
the suction pressure reduces. This is mainly due to individual suction tubes
in the Ring Frames. This when replaced with our Common Pneumafil suction
tubes results in the following benefits.
Advantages
-
Increases suction pressure considerably.
-
Pressure
variation between gear end and off end is drastically reduced.
-
Possibility of altering suction fan blade diameter resulting in substantial
energy saving - this conversion on modern Ring frame such as “Elite”
has resulted in energy saving due to increase in suction pressure.
-
Facilitates the
fitment of magnetic clearer roller for the front bottom fluted roller which
is not possible when the ring frame is fitted with individual suction tubes.
|
|
|
Spin Plus - |
|
A Programmable speed controller for
LR G 5/1 Ring frames and
Ring frame with VPS drive - Spin plus & Cone drum speed variator could be
offered as a combination for shorter Ring frames.
Advantages
-
LED display
-
Automatic speed correction
-
Tamper proof facilities like password for data entry and non Volatile memory.
Production monitoring parameters
-
Altering the speed verses time pattern between doffs
-
Few moving parts ensures very less maintenance
|
|
|
|
